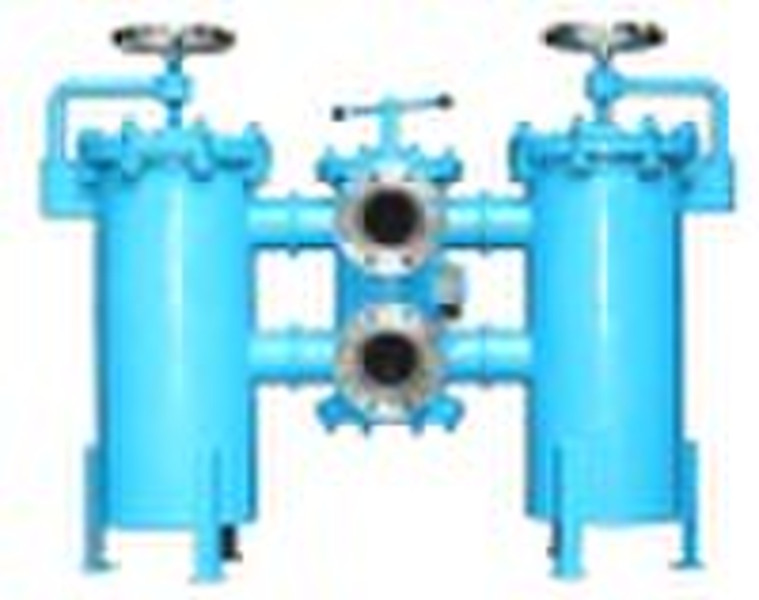

dakang SYLQ-BL series duplex return filter

Introduction : Binocular oil return filter SYLQ-BL series is made of two monocular and a change valve . mating BLLX series unite type filter element . The structure of filter simpleness , convenient to use , and with balanced valve and differential pressure send message receptor , in order to reach ensure system security . It only use a filter unit to process work when it working regularly . It can open pressure balanced valve and move change valve , switch to another filter unite to process work ,then to clean or change filter element which is banked-up , when the filter unite pressure loss overproof (more than 0.35 MPa). This filter is widely used in metallurgical machinery , mining machinery , heavy-duty machinery etc hydraulic system. Detail Assembly modelStimulate the menstrual flow(mm)Nominal flow(L/min)Filter precision(um)Nominal pressure(MPa)Pressure loss(MPa)Mating filter element modelInitialMaxSYLQ-BL656540020253040801201.6No more than 0.10.35BLLX-171×265SYLQ-BL8080600BLLX-171×464SYLQ-BL1001001000BLLX-231×464SYLQ-BL1251252500BLLX-355×464SYLQ-BL1501502500BLLX-355×464SYLQ-BL2002004000BLLX-355×760
